DEWATERING PUMPS

Cast Iron, Cast Steel, Bronze, SS304, SS316, etc,
BASE PLATE : Suitable base can be supplied with the pump.
ROTATION : Marked with arrow on the casing of each pump. Check before coupling with the prime mover.
FLANGES : Companion flanges are supplied along with the pump.
STUFFING BOX : Deep gland box used with graphite packings. Packings are lubricatec by lantern ring with grease.

Marine	- Pumping water from docks, ports, vessels.
Industrial	- Pumping petroleum products, chemicals, effluentsash-water, tiles & marbles, filter press etc.
Civil Constrction	- Dewatering foundations, trenches and pits.
Mobile Machinery	- Cooling water for marine engines and shovels.
Public Utilities	- Sewage pumping

Non-cloging, designed for high efficiency. Semi open type and are hand finished for perfect smooth flow.
SHAFT : Made for SS 410 steel specifications. Ample size to transmit power without distortion or vibration.
BEARINGS : Antrification ball bearings, single row deep grooved heavy duty selected to provided maximum service. Grease lubrication by lantern ring with grease.
VOLUTE CASING : Heavy Duty, built in volute, having self priming features, and integrally cast with base from close grained C.I castings.

• Long life due to replaceable wearing parts.
• Dynamically balanced rotating parts.
• Easy maintenance and spares availabuility.
• Designed for automatic air release during priming.
• Grease Lubricated deep grooved ball bearings.
• Quick automatic self priming action
• Repairs possible without disturbing the pipe connections.
• Non-clogging impeller to handle suspended solids.

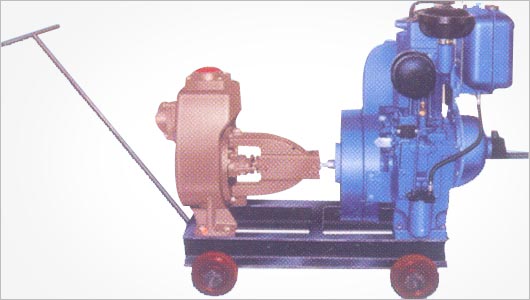

• Portable when fitted on trolley/trailer.
• Suitable for motor/ engine.
• No need for foot valve
• Efficiency at par with internationally available pumps.
• Top flat efficiency curve; minimum variation in efficiency over the entire operating range.
