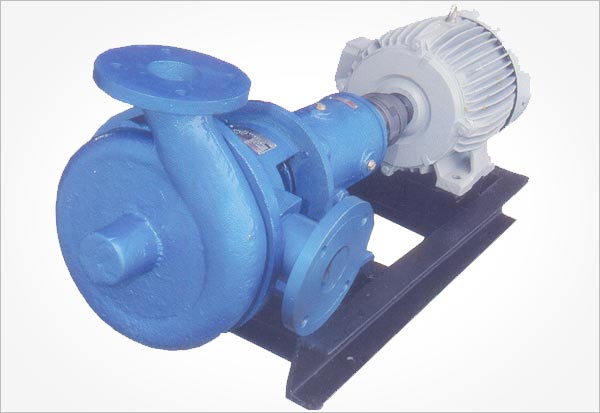

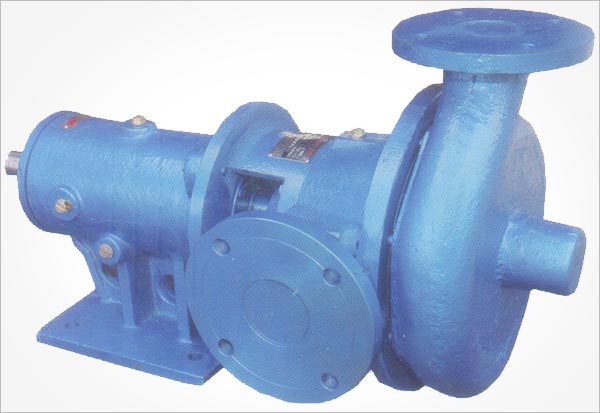

ROTOMECH FILTER PRESS PUMP

SUITABLE FOR SLUDGE, SLURRY, HIGH PERCENTAGE OF SOLIDS, SMOOTH FLOW

APPLICATION : Pumping to Filter Press, Tiles & Marbles, High Pressure Pumping to Filter For sludge's , Mud Pumping for General Dc-Watering of excavations, Effluents, Sludge, Suitable for Muddy Water, Slurry Transfer all type of Industrial Application, Extensively used in Textiles Dyeing, and Various industries.
Continous Duty Pump, No mechanical Seal, Trouble Free & Easy Maintenance.

• MATERIAL OF CONSTRUCTION
• BEARING
• FEATURES
• USAGE

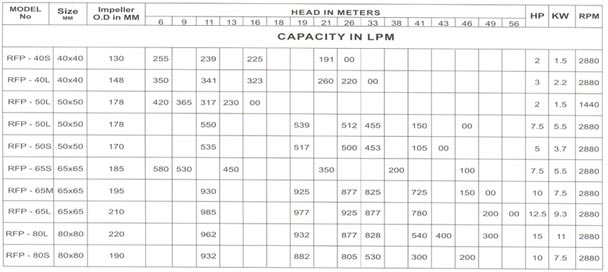

• RFP SERIES

Cast Iron, Cast Steel, Bronze, SS - 304, SS - 316, CD - 4MCU, Alloy - 20, Etc..

Heavy duty Antifrication Ball Bearing, Single Row Deep Grooved Heavy Duty, Selected to Provide Maximum Services with Oil Lubrication.

Casing	-CIFG 200 Option SS - 304
Impeller	-SS - 304
Shaft	-SS - 304
Solid Handling	- 20 mm

• Long Life due to Replaceable wearing Parts.
• Dynamically Balanced Rotating Parts.
• Easy Maintenance and Spares Availability.
• Oil Lubricated ball Bearing.
• No Gland Leaking Problems.
• Without Distortion or Vibration.

• Pumps are Properly tested for pressure and Capacity at works.
• All Pumps are given performance guarantee for given application.
• Spares having interchangeability and very easy for service inspection.
• Individually designed heavy duty open impellers, front clearance, easily adjustable for sustaining high efficiency & Performance option - Closed Impeller.
• These pumps are also available with higher discharge & Pressure details of which are available on request.
