| Volute Casing |
- Cast Steel, WCB |
| Backplate |
- Cast Steel, WCB |
| Impeller, All wetted parts |
- Cast Steel, WCB |
| Shaft |
- EN - 8 |
Our Backpullout Design of Pumps makes it Easy for Inspection and Repairs of Rotation Parts.
Thermic Fluid Pumps are supplied from 1HP to 20 HP against customer requirements.
Volute - Type, end Suction, Backpullout, Centre Line Top discharge, integrally Cast feet,also availablecenter line support casing.
Salient Features : Low down-time and recurring costs Back-Pull-Out Design Permits quick and easy access to rotating parts without disturbing suction and discharge pipes, electric motor, its connections and alignment.
Low Maintenance, inventory and standardization because of Module System. 39 Sizes with 4 BearingHousing Units ensure minimum of inventory for maintenance and standardization. Generally in conformity with international Standards DIN/ISO/API/BS/ANSI. Ensure reliability and standardization in construction, layout design and foundation. Saves time and cost on drawing and design.
Enclosed type, High Mechanical and hydraulic efficiency, provided with back vanes to reduce pressure at the stuffing box.
Sealing Arrangement : Graphite packing packed at gland box with cooling chamber to pass cooling water and protect graphite packings life, also available 100% Leak Proof Mechanical Seal Fitted Pumps.

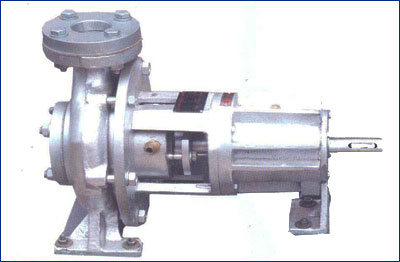

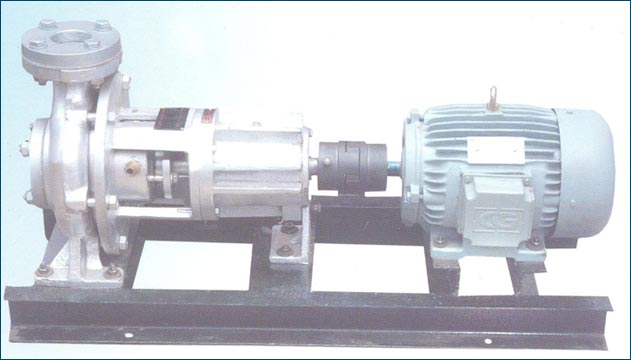

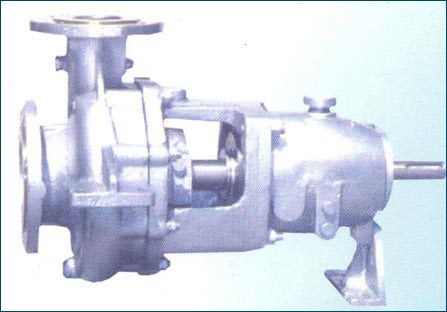

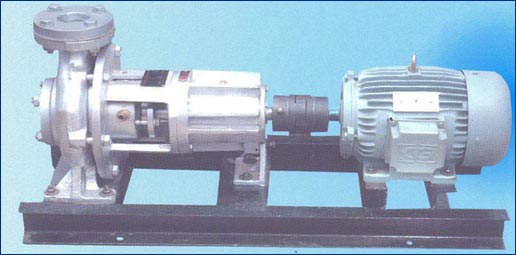

The Thermic Fluid Hot Oil Pumps are Manufactured in special constructions for the circulation of heat Transfer Oils. The application fields are covered y the following high temperature and pressure Limits.
