HGBX TYPE

A PROVEN CONCEPT FOR PUMPIN VISCOUS LIQUID since 1980...
FOREWORD

Gear pump type "HGBX" is all stainless steel SS-316 self priming biodirectional positive displacement rotary pump, fitted with Teflon coated dry running 'DU' bush bearings. Three piece design makes the pump easy cleanable, easy maintainable simply by removing four dom nuts on back cover. Mechanical seal is iptional for Teflon gland packing. The mounting bracket converts the pump to foot mounting & facilitates to align the pump with electric motor of appropriate ratings on base plate at same frame height.

• MOC

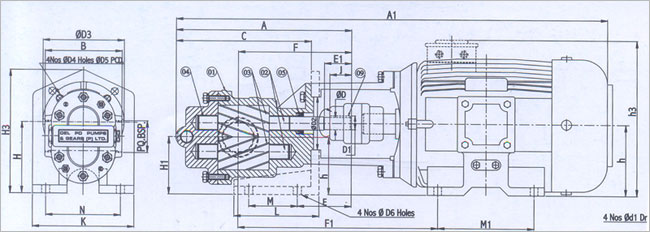

• DESIGN & DIMENSIONS

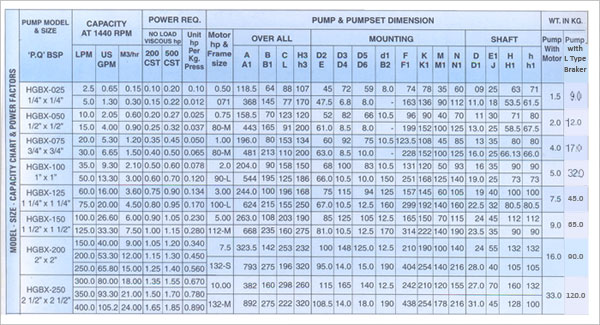

• MODEL - SIZE - CAPACITY
• SPECIAL NOTES
• USES

	Pump Body		Rotor / Stator Shaft
	Front Cover		Dom Nuts, Stud & Key - Ss Aisi 316
	Back Cover		Bearing - Teflon Coated 'Du'
	Seal Cover - Ss 316 - Cf8m,		Bracket - Si/Cs
	R.H. & L.H. Gear		Sealing & Packing - Teflon

Power requirement at duty point can be worked out by multiplying the duty point pressure with unit hp. & adding no load viscous power of appropriate viscosity to this. Safety margin may be provided before fixing the rating of the pri-mover. For higher viscosity further margin may be kept or the manufacturer may be consulted. All sizes of 'HGSX' pmps are designed to run at 1440 RPM up to 1000 CST but with additional horse power, for higher sizes reduce the speed to 960 RPM. For viscosity above 1000 CST. Speed is require further to avoid cavitation & over loading consult our expert.

This compact & efficient SS pumps finds different application for handling food products like Ghee, Butter, Fruit pulp Vegetable souse, Kanji etc. They are also used in Pharmaceutical application for handling sugar solution, Glycerine, Glycol etc. Corrossive viscous chemicals application can also be met with this pump most effectively.
