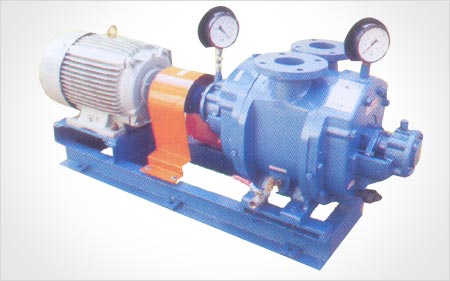

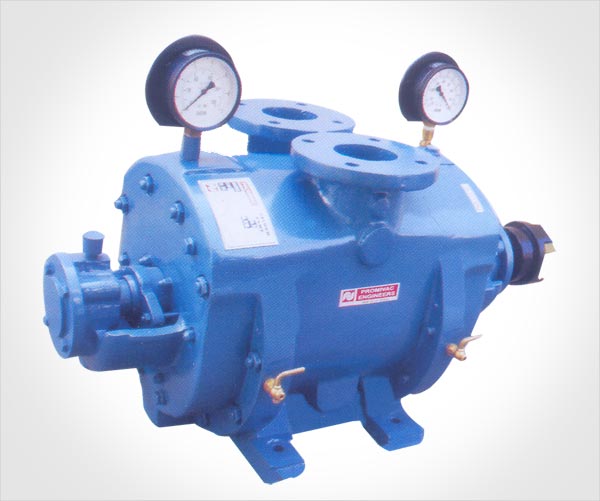

Double Stage Water ring pumps has come forth with a Double Stage version of their vastly patronized Water-ring type Vacuum Pump. Each and every pump of this new series very successfully and effectively takes care of its respective job and hence as usual is held.
Double Stage Water-ring Vacuum Pumps are of Positive Displacement Type wherein the Impeller is mounted Eccentrically to the axis of the Pump Casing.
These models are quite versatile and find their applications in Pharmaceutical, Chemical, Petro-chemical & Food Processing Industries, Breweries & Distilleries, Confectionery, Plastic, Textiles, Garment & Leather Processing Industries, Paper & Sugar Mills, Power Plants, Furnaces, Tiles & Ceramics Industries, Cement & Fertilizer Plants, Metallurgical Laboratories and is suitable for host of other Vacuum Applications like Vacuum Conveying, Packaging, Extrusion, Priming, Dehydration, Filtration & Sterilizing etc.
| Model No. |
Air Displacement |
Recommended Motor |
Vacuum mm
Hg |
Sealing Water Reqd.'(LPM) |
| m3/hr |
LPM |
H.P |
RPM |
| PVW - 50 T |
80 |
1350 |
5 |
1450 |
720 |
07 |
| PVW -100 T |
160 |
2665 |
7.5 |
1450 |
720 |
09 |
| PVW-150 T |
220 |
3665 |
10 |
1450 |
720 |
14 |
| PVW - 200 T |
330 |
5500 |
15 |
1450 |
720 |
20 |
| PVW - 250 T |
440 |
7335 |
20 |
1450 |
720 |
24 |
| PVW - 275 T |
625 |
10415 |
25 |
1450 |
720 |
30 |
| PVW - 300 T |
750 |
12500 |
.30 |
1450 |
720 |
40 |
| PVW - 400 T |
1200 |
20000 |
40 |
1450 |
720 |
50 | |
